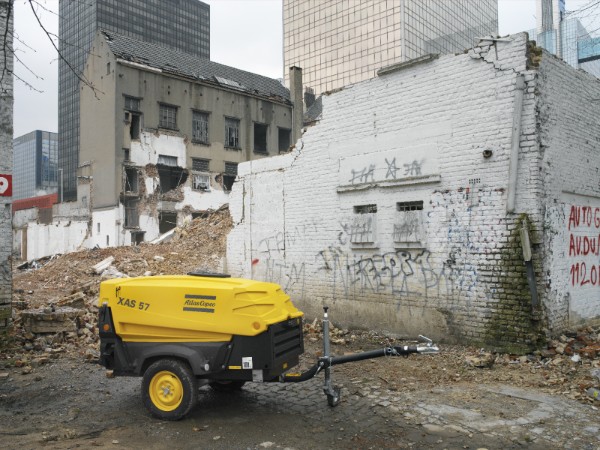

便攜移動空壓機
輕型，緊湊，低油耗
產品介紹
30%
#多可比傳統壓縮機輕 30%
50%
#多可比傳統壓縮機小 50%
50%
可節約#作成本高達 50%
輕型
緊湊
低油耗
Technical data
| XA 57 E | XA 77 E | ||
| Normal Effective Working Pressure | psi | 100 | 100 |
| bar | 7 | 7 | |
| Free Air Delivery | l/s | 50 | 70 |
| guaranteed according to | m3/min | 3 | 4.2 |
| ISO1217 ed. 3 1996 annex D | cfm | 106 | 148 |
| Oil content of compressed Air | PPM | <=5 | <=5 |
| Air Outlet Valve | inch | 2xG3/4” | 2xG3/4” |
| Dimension(with towbar) | LxWxH | 2696*1305*1160 | 2696*1305*1160 |
| Dimension(without towbar) | LxWxH | 1520*1305*1160 | 1520*1305*1160 |
| Weight | 550 | ||
| Motor | Y2-160L-2 | Y2-180L-2 | |
| Motor power | kW | 18.5 | 26 |
| Service Factor | 1.15 | 1.15 | |
| Motor Speed | rpm | 2940 | 2940 |
| Power Supply | V/P/Hz | 380/3/50 | 380/3/50 |
| XAS 486 E | XAMS 396 E | XAMS 466 E | XAHS 376 E | XAVS 306 E | XAVS 366 E | ||
| pressure | Bar | 7 | 8,6 | 8,6 | 12 | 14 | 14 |
| pressure | psig | 102 | 125 | 125 | 175 | 204 | 204 |
| flow | m3/min | 28,5 | 23,4 | 28,2 | 22,7 | 18,6 | 20 |
| flow | cfm | 1007 | 827 | 996 | 802 | 657 | 707 |
| engine model | YLF315L1-4 160KW | YLF315L1-4 160KW | YLF315L1-4 160KW SF=1.15 | YLF315L1-4 160KW SF=1.15 | YLF315L1-4 160KW SF=1.15 | YLF315L1-4 160KW SF=1.20 | |
| lenght | mm | 5070 | 4685 | 4685 | 4685 | 4685 | 4685 |
| width | mm | 1990 | 1685 | 1685 | 1685 | 1685 | 1685 |
| height | mm | 2094 | 2001 | 2001 | 2001 | 2001 | 2001 |
| weight | kg | 3500 | 4193 | 4193 | 4193 | 4193 | 4193 |
| XRHS 930 E | XRHS 1150 E | XRVS 960 E | XRHE 1300 | ||
| normal effective | psi | 290 | 290 | 363 | 290 |
| working pressure | bar€ | 20 | 20 | 25 | 20 |
| actual free air delivery | l/sec | 442 | 533 | 460 | 617 |
| actual free air delivery | cfm | 937 | 1129 | 975 | 1300 |
| actual free air delivery | m3/min | 26,7 | 32 | 27 | 37 |
| engine model | YE2-355M1-4 | YE2-355M2-4 | YE2-355M2-4 | HJN1-355L-4 | |
| output | kW | 230 | 275 | 275 | 315 |
| service factor | 1,15 | 1,15 | 1,15 | 1,15 | |
| motor speed | rpm | 1490 | 1490 | 1490 | 1490 |
| unit dimensions (L x W x H) | |||||
| wagon (tower raised) | m | 5,5 x 2,1 x 2,7 | 5,5 x 2,1 x 2,7 | 5,5 x 2,1 x 2,7 | 5,6 x 2,2 x 2,6 |
| skid | m | 3,6 x 2,1 x 2,5 | 3,6 x 2,1 x 2,5 | 3,6 x 2,1 x 2,5 | NA |
| support mounted | m | 3,6 x 2,1 x 2,4 | 3,6 x 2,1 x 2,4 | 3,6 x 2,1 x 2,4 | 3,4 x 2,2 x 2,3 |
| Weight | |||||
| wagon | kg | 5615 | 5615 | 5615 | 6548 |
| skid | kg | 5455 | 5455 | 5455 | NA |
| support mounted | kg | 5265 | 5265 | 5265 | 6021 |
| sound pressure level at 7 meter | dB(A) | 80 | 80 | 80 | 80 |
